Fill in a PDF form using MVC

Fill in a PDF form using MVC

In this sample we will create a small ASP.NET application to fill in pdf forms, using a webform.

Fill Pdf Online Mvc

To start off, create a new blank MVC project in visual studio.

We will first start by creating a controller for the webserver: create a new Controller and call it “FormFillController”. Add the following code to it:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Mvc;
using TallComponents.PDF.Forms.Fields;
using System.IO;
using TallComponents.PDF;
using TallComponents.PDF.Annotations.Widgets;

namespace FormFill.Controllers
{
    public class FormFillController : Controller
    {

        //show form to user when rendering the FormFillController
        public ActionResult Index()
        {
            return View();
        }

        //when form is submitted, this function is called with the field parameters
        public ActionResult HandleForm(string username, string email, Boolean flatten)
        {
            FileStreamResult pdf = fillPDF(username, email, flatten); //fill in existing pdf and return the pdf as an action result

            pdf.FileStream.Position = 0; //since the stream has been read, reset it to the start so we use it again

            return pdf; //return the pdf as weboutput to the user
        }

        //fill in existing pdf and return the pdf as an action result
        private FileStreamResult fillPDF(String username, String email, Boolean flatten)
        {
            //open the pdf form
            using (FileStream source = new FileStream(Server.MapPath("~/simpleform.pdf"), FileMode.Open, FileAccess.Read))
            {
                Document document = new Document(source);

                //get the correct textfields and fill in the corresponding values
                TextField userfield = document.Fields["username"] as TextField;
                userfield.Value = username;

                TextField emailfield = document.Fields["e-mail"] as TextField;
                emailfield.Value = email;

                //if flatten, then flatten the form fields (make them uneditable).
                if (flatten)
                {
                    foreach (Widget widget in userfield.Widgets)
                    {
                        widget.Persistency = WidgetPersistency.Flatten;
                    }

                    foreach (Widget widget in emailfield.Widgets)
                    {
                        widget.Persistency = WidgetPersistency.Flatten;
                    }
                }

                //since we don't write to disk, write the pdf to a memory stream and return it as a pdf
                MemoryStream ms = new MemoryStream();
                document.Write(ms);
                ms.Flush();
                ms.Position = 0;
                return File(ms, "application/pdf");
            }
        }
    }
}

The Index() function will return a new webform (which we will create shortly) and the HandleForm function is called when the user presses the “Submit” button on the online form. Then, the field values are set in the PDF and it is returned to the user. Now that the controller has been made, it is time to make the view for the user: this will contain a webform which the user can fill out and its contents will be saved to the PDF

On the right side, you will see several folders: open the “Views” folder and create a new view in the “FormFill” subfolder and call it “Index” (deselect the “Select Master Page” option).

Now add the following code to it:

<!DOCTYPE HTML PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
    <title>Index</title>
</head>
<body>
    <div>
        @using (Html.BeginForm("HandleForm", "FormFill"))
        {
            <br />
            <table>
                <tr><td> Enter your username:</td><td>@Html.TextBox("username")</td></tr>
                <tr><td> Enter your e-mail:</td><td>@Html.TextBox("email")</td></tr>
                <tr><td colspan=2>@Html.CheckBox("flatten") flatten pdf</td></tr>
            </table>
            <br /><br />
            <input type="submit" value="Submit" />
        }
    </div>
</body>
</html>

As you can see this code is a mix between regular HTML code and C#. Two textboxes are added where the user can enter his/her username and email and a checkbox is added to set whether the resulting PDF form fields have to be “flattened”, i.e. whether the resulting PDF contains fields which cannot be edited.

At the start of the table, a reference is made to the function HandleForm(). When the user clicks on the submit button, all the form values are sent to this function as parameters (so in this case: two Strings and one Boolean).

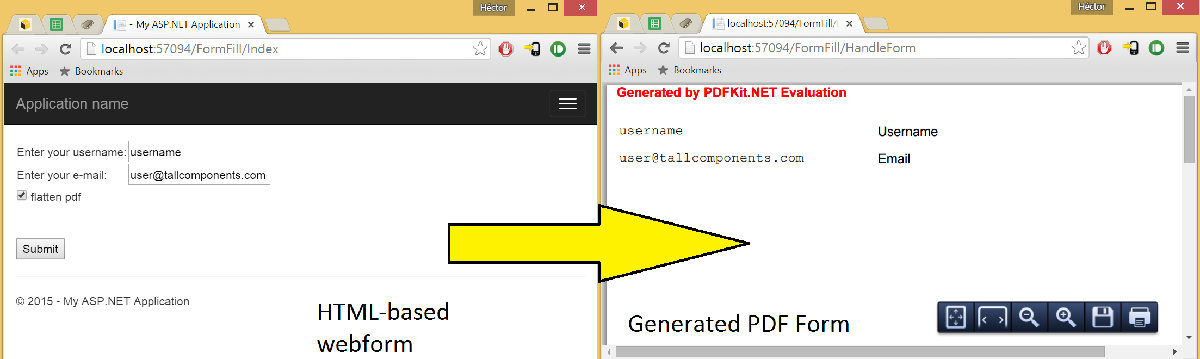

Together the View and the Controller will handle the form filling, we now only have to connect them to each other. Open the “Global.asax” file and set the Controller to “FormFill” and the action to “Index”. Now when you run the project the HTML form will be shown and after pressing “Submit”, the contents will be save in a PDF file and is shown to the user.
